    Home News Esdec’s mounting system for corrugated roof approved by Eternit
    News

    Esdec’s mounting system for corrugated roof approved by Eternit

    21 September 2020

    The successful completion of the test program, witnessed by KIWA BDA, allowed Esdec to earn approval from corrugated roof manufacturer Eternit.

    Esdec’s recently launched mounting system “ClickFit EVO” for corrugated roofs, has successfully performed a series of tests that were organized by a special collaboration between test institution KIWA BDA and corrugated roof producer Eternit. With this, Esdec has proven that PV-Installations on fiber cement corrugated roofs can be installed in a safe and reliable manner.

    The potential for solar panels on corrugated roofs is high, however, there are also the necessary technical challenges. Extensive testing is of great importance to guarantee reliable PV installations on corrugated fiber cement roofs. In collaboration with KIWA BDA – one of the top 20 worldwide in the field of testing, inspection and certification – and Eternit, Esdec has developed a thorough program to test how the mounting system and the Eternit corrugated roofs behave. In this test plan, Dutch standards and knowledge of fiber cement corrugated roofs (EN494), of PV systems (NEN 7250) and the Eurocodes for wind and snow loads are bundled. Heavy requirements are derived from this. Various pressure, lift, slide and pull-out tests have been carried out under the supervision of test institute KIWA BDA. This tests the thermal effect and water tightness under extreme conditions. The combination of Eternit fiber cement board and Esdec’s corrugated iron bracket has achieved excellent values.

    Waterproof

    For example, to test the water tightness, static and dynamic water tightness tests were performed. The dynamic test is considered one of the toughest possible tests. The mounting bracket on a corrugated roof was tested under water pressure and exposed to mechanical tensile forces (lift). This way, the practical situation is simulated as much as possible.

    The test not only shows that the mounting bracket of the Click Fit EVO system closes the roof properly, but also that the bracket does not cause micro-cracks in the corrugated sheet. The heat rain test tests the construction for water tightness with running water at the same time as an endurance test for compressive forces and with heat radiation. Both tests have shown that here too the mounting bracket performs beyond the set standard and does not lead to damage or impact anywhere.

    Unique collaboration

    The collaboration between Esdec, Eternit and KIWA BDA is the first to test, validate and approve a quality claim in such a way. The results of the tests were extensively analyzed and approved by Eternit. This means that Eternit roof owners can use the Click Fit EVO mounting bracket, when mounted correctly, without any problems for PV installations in the Benelux. The corrugated roof is protected, remains watertight and retains its service life.

    “Esdec always wants to supply the most reliable mounting systems for rooftop solar projects. We can only achieve this if we extensively test our products and systems and continue to develop them”, says Erik Valks, CEO Esdec Europe. “We are happy to share these test results with our customers.”

    “There is increasing interest in solar panels on corrugated roofs in the agricultural sector. Every day we receive questions about the correct mounting of solar panels on our Eternit Ecolor corrugated sheets. Thanks to the extensive testing carried out by the Etex laboratory, under the supervision of KIWA BDA, there is now a suitable mounting combination for solar panels on Eternit corrugated sheets. We are therefore very pleased with Esdec as a partner who will support us in the market”, says Bjorn de Voijs, Sales Manager Netherlands of Etex, the parent organization of the Eternit brand

    The director of KIWA BDA, Chris van der Meijden stated “Esdec’s mounting system for PV-installations on corrugated roofs is a wonderful development in the PV-industry. The test program, to which the corrugated sheets and mounting brackets are subjected, has been drawn up in good cooperation with Esdec and Eternit”.

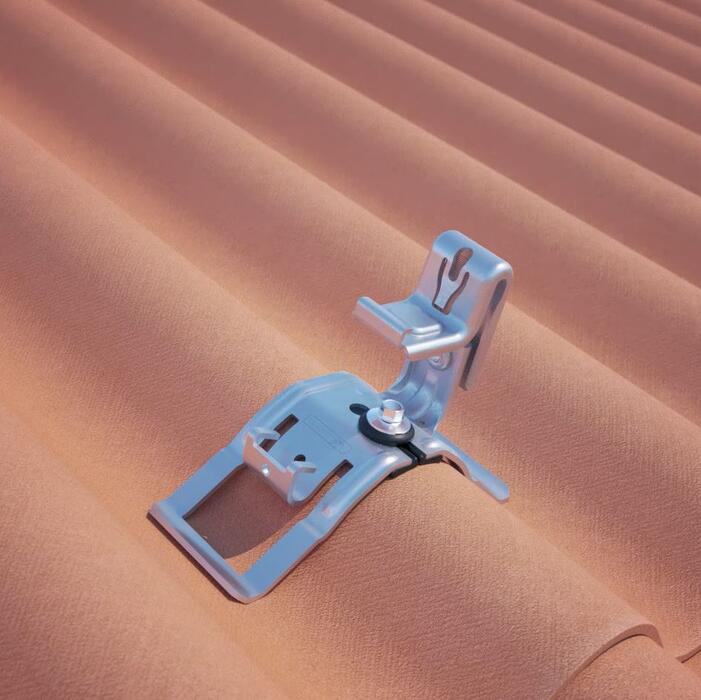

    Mounting bracket for corrugated roofs

    Esdec’s mounting system for corrugated roofs works with a unique mounting bracket: this allows the mounting rails to be mounted in a simple and secure way, on both existing roofs and new roofs, and it ensures a watertight seal. Because the mounting bracket fits exactly to the wave of the roof, down to the bottom, the pressure is distributed uniformly, point load is minimized and the thermal effect of the roof is not limited. This contributes to a solid and safe construction of the system and the lifetime of the roof. More information.
