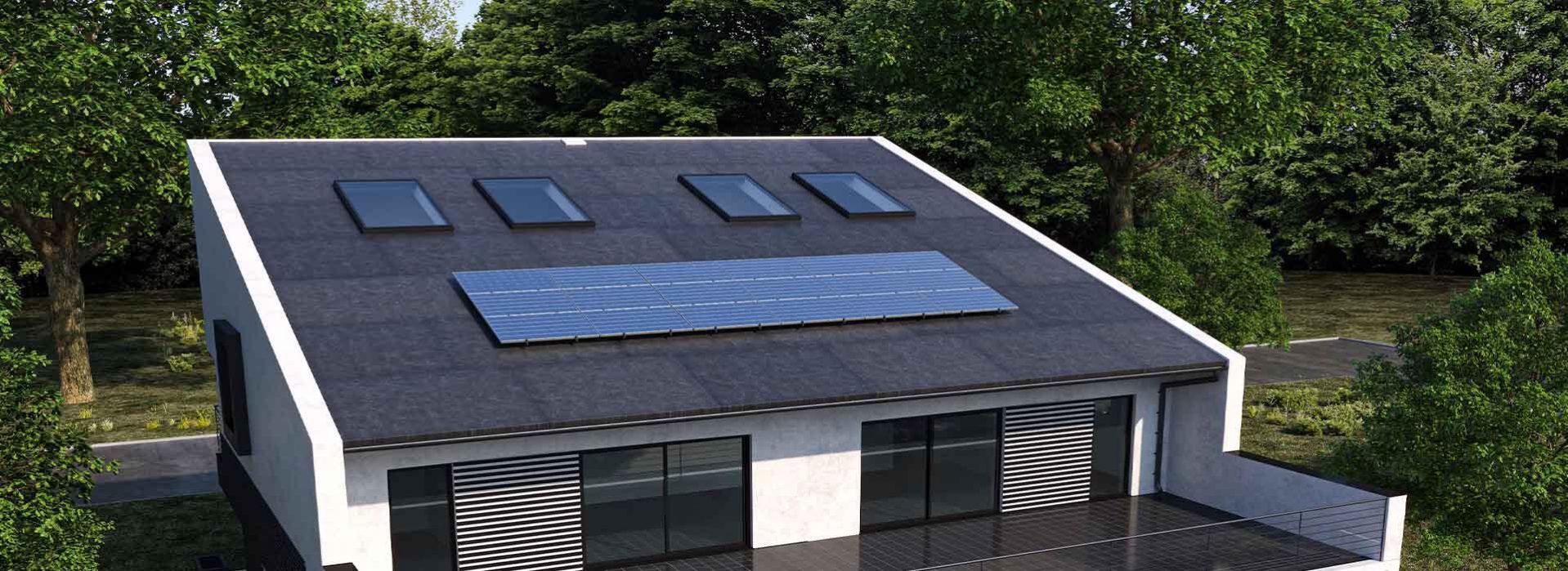

ClickFit EVO EPDM and Bitumen Roof

Mounting Solar Panels. We make it smarter, faster and simpler. This is proven by ClickFit® EVO EPDM and Bitumen Roof, a mounting system for all EPDM and bitumen roofs. For you, this means working more efficiently, with less hassle.
Summary
Technical specifications
Video
FAQ
Download brochure Contact us
Easy installation
ClickFit EVO has a fully pre-assembled hanger bolt and smart click connection that makes it possible to easily and quickly place the panels on the roof.
Fewer tools
To install ClickFit EVO EPDM and Bitumen Roof, you just need one tool.
Fewer components
ClickFit EVO EPDM and Bitumen Roof consists of only 4 components. This makes installation extra easy.
Maximum time savings
The small number of installation steps means the panels are installed up to 40% faster.

Quick installation on any EPDM and bitum roof

This smart mounting system can be installed quickly thanks to the convenient click system and pre-assembled hanger bolt. The hanger bolt is adjustable in height, 360 degrees rotatable and available in 3 lengths and 2 thicknesses for wooden purlins/trusses. And the flexible adapter compensates for roof irregularities of up to 10 degrees.

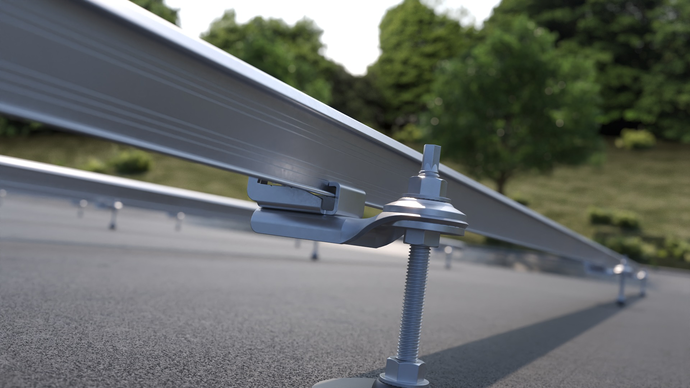

Pre-assembled hanger bolt
Convenient click system

4 basic components

The ClickFit EVO mounting system for pitched roofs consists of just 4 basic components. This makes installation extra easy. Read on for more information on each component.

Stick screw

This screw is delivered fully assembled. The flexible adapter quickly and easily accommodates roof unevenness of up to 10 degrees. The universal, rotatable and self-aligning click connection allows mounting of solar panels in landscape and portrait position.

Mounting rail

Suitable for all types of pitched roofs. Quick and easy installation by clicking instead of screwing. This saves tools, handling and time.

Module clamps

The universal module clamp is height adjustable and thus suitable for solar modules with a frame thickness between 30 and 50 mm. Due to its clever design, the panel clamp (in combination with the end cap) can be used as a middle and end clamp.

End cap

The end caps provide a stylish and windproof finish. They are available with and without clamp support in grey and black.

Strong and durable

ClickFit EVO EPDM and Bitumen Roof is made of high quality aluminum and Magnelis steel. This type of steel has a longer life, is resistant to corrosion and has a self-curing coating. This means that you will be working with high-quality products.

Longer lifetime
Self-repairing coating

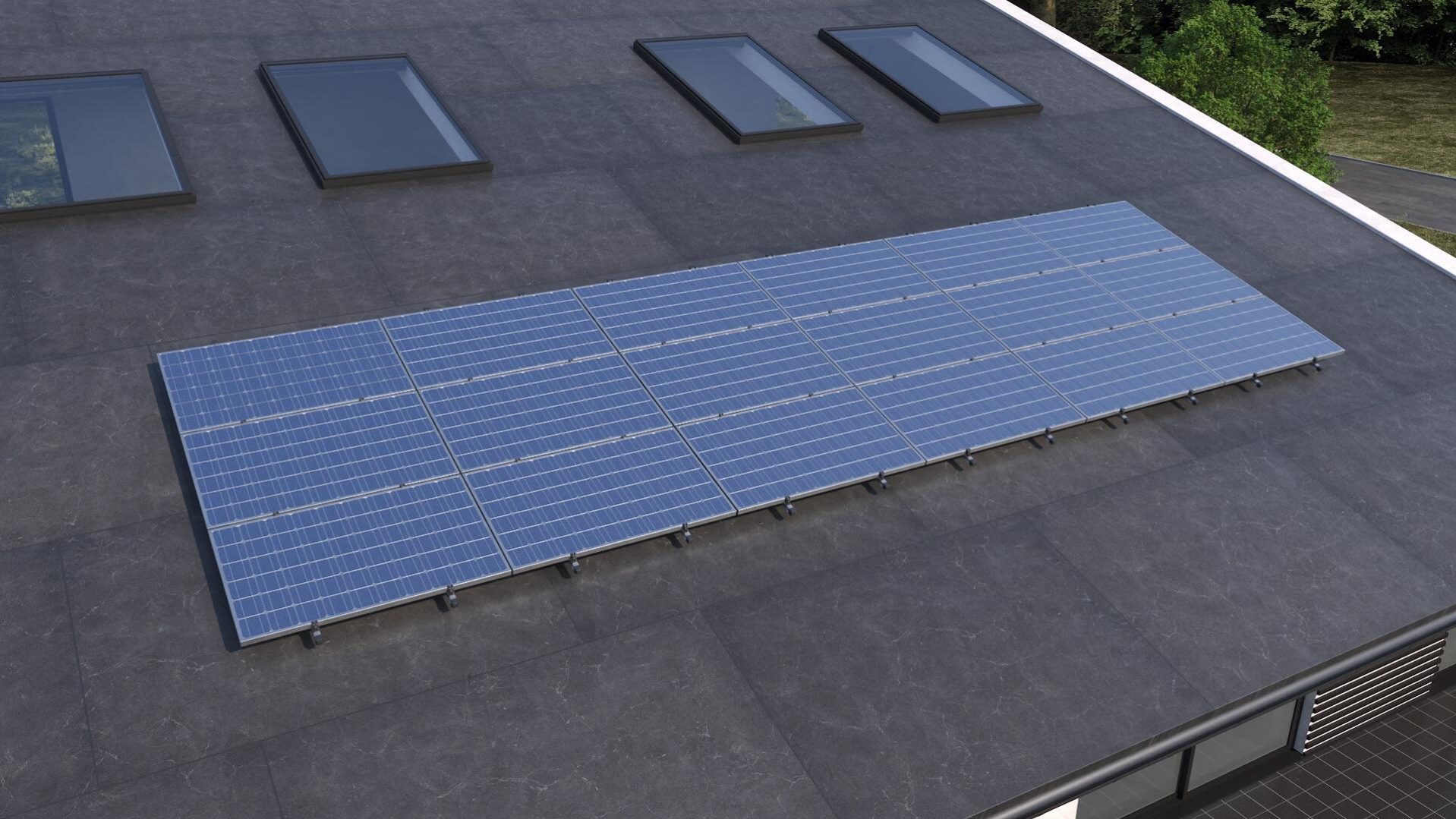

Project support

Choosing Esdec means receiving support throughout your entire solar project. We support our solar professionals and remove as much of the hassle as possible. For example, you can quickly make a calculation using our calculator and we also offer free training courses and webinars.

Free trainings & webinars

Virtual showroom

Discover all our mounting systems in the virtual showroom, watch videos and webinars and take a look at our training center.
  • View our training room
  • Our mounting systems at a glance
  • Watch videos and webinars

Discover all of Esdec’s mounting systems for pitched roofs.

View our range

Projects

Sunliner Solar installs 597 solar panels with FlatFix Fusion in Poland
Read more
AJ Power in Latvia installs largest PV installation with FlatFix Fusion
Read more
Saltoki installs 1500 panels (500KW) using FlatFix Fusion
Read more

Knowledge base & support

All information about the ClickFit EVO EPDM and Bitumen Roofs

ClickFit EVO EPDM and Bitumen roof

ClickFit EVO can be used on insulated and non-insulated bitumen and EPDM roofs. Note: the thermal effect of some types of EPDM and bitumen roofing can affect the waterproofing of the PV installation. We therefore recommend that you consult the roofing supplier before installation.

The ClickFit EVO Hanger Bolt is available in 5 different types (3 lengths and 2 thicknesses):

M10 x 200mm
M10 x 250mm
M12 x 250mm
M12 x 300mm
M12 x 350mm

Yes, with Clickfit Evo Hanger Bolt you have the choice between landscape or portrait mounting of the solar panels. The Click Connection is rotatable, so you only need one type of clamp.

To attach an optimiser or microinverter (collective name: MLPE = Module Levelling Power Electronics), you can use our ClickFit EVO MLPE Clip Lightweight or Heavyweight (art. no. 1008067 or 1008068). Note! If you mount the panels with the mounting profiles for steel roof, we recommend choosing the high (optimiser ready) mounting profile. This provides sufficient space between the roof and the solar panels. The MLPE Clip Lightweight is simply clicked onto the mounting profile, providing integrated cable management! Then click the MLPE onto the clip. First you mount the MLPE Clip Heavyweight on the MLPE, after which you mount the clip, with MLPE, on the mounting rail. Make sure the MLPE clip is placed at least 15 cm from the end of the mounting profile. Want to see how it works? Watch our installation demo.

All solar panels in the same row are automatically interconnected thanks to the ClickFit EVO Module Clamp. To bond the entire PV system, you do need to connect each row to grounding separately, because the individual rows are not connected to each other by the mounting system. The earthing conductor (≥Ø 4mm2) runs parallel to the positive and negative conductors and is connected to a separate grounding point of the inverter. If you have any questions about earthing and bonding, please contact our technical experts.
