ClickFit EVO Corrugated Roof

Installing solar panels – we make it smarter, faster and simpler. How? With the ClickFit® EVO Corrugated Roof, a mounting system specially developed for corrugated roofs, such as those often found in the agricultural sector. For you, this means working more efficiently, with less fuss.
Uses existing roof plate screws for fastening
The mounting bracket is attached to the roof plate screws in the purlin, keeping the roof watertight.
Uniform pressure distribution
Pressure is evenly distributed and point loads are reduced because the bracket leans on the valleys and fits precisely around the wave of the roof.
Eternit approved
Eternit, a leading manufacturer of corrugated sheet products, has extensively tested the mounting bracket for quality, safety and reliability and approved it. It therefore bears the quality seal ‘Eternit approved’.

ALL SPECIFICATIONS

The mounting bracket is easy to mount and advised for corrugated sheets of the 177/51 type that meet the valid standards as stipulated in EN 49. For other corrugated sheet roofs, the hanger bolt solution is advised. For both ways, the mounting features are mentioned in the overview below.

Bracket
Hanger Bolt
Roof pitch
Short side clamping
Long side clamping
Portrait set-up
Landscape set-up
Max panel surface area
Integrated cable management
Max length of continuous rail
Material
10-60º
-
-
2,25 m2
15m
Magnelis® steel & aluminium
5-60º
2,6 m2
15m
Magnelis® steel & aluminium

Less installation time

You can quickly install the components using just one tool. Use the handy mounting brackets on most roofs, and the pre-assembled hanger bolt on non-standard corrugated roofs. This saves time, enabling you to take on other projects.

Handy mounting bracket
Or pre-assembled hanger bolt

4 basic components

The ClickFit EVO mounting system for pitched roofs consists of just 4 basic components. This makes installation extra easy. Read on for more information on each component.

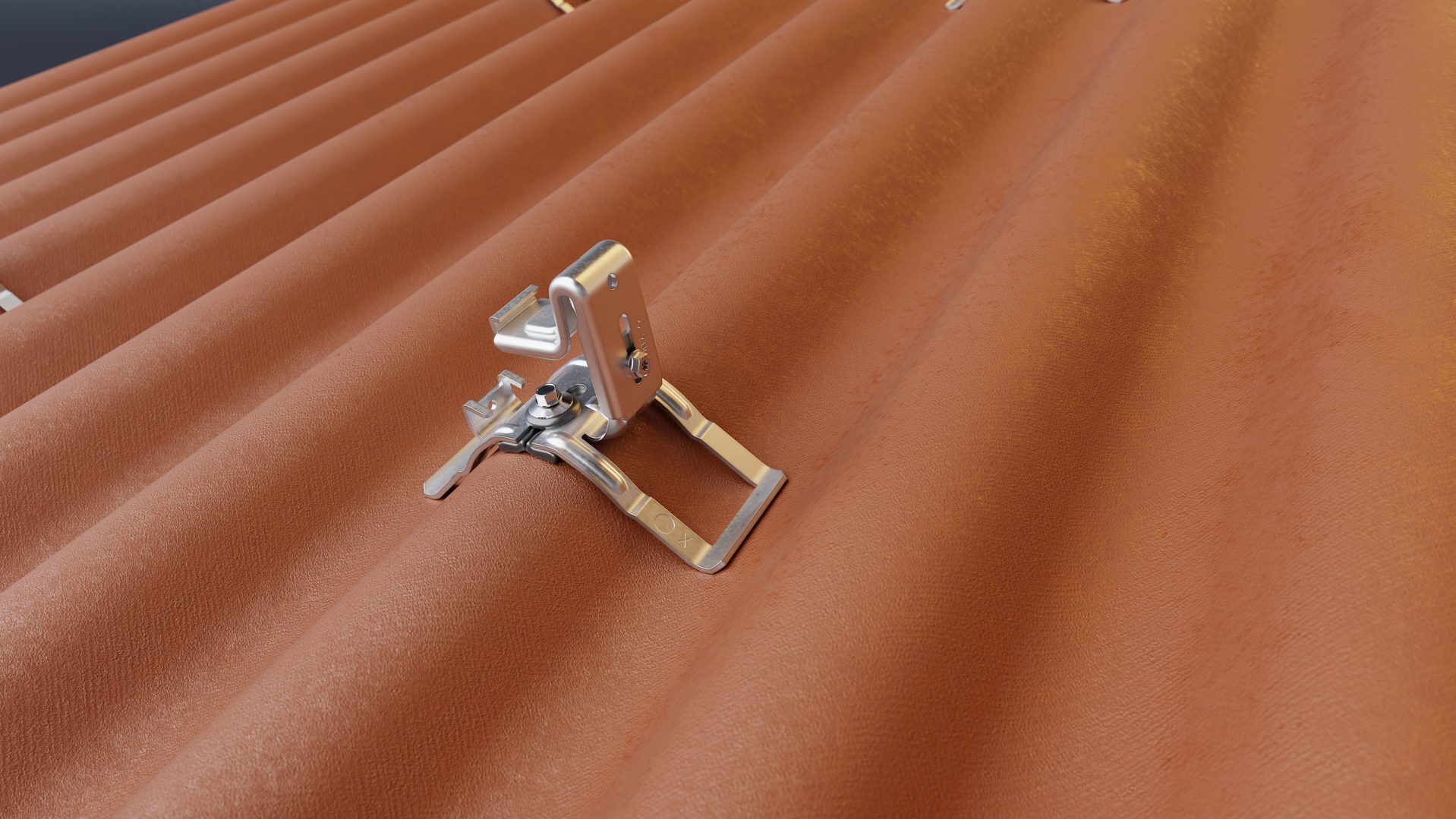

Mounting bracket

The bracket leans on the valleys of the corrugation of the plate and closes precisely around the high part of the corrugation. This distributes pressure evenly, ensuring reduced point loading and a stable system.

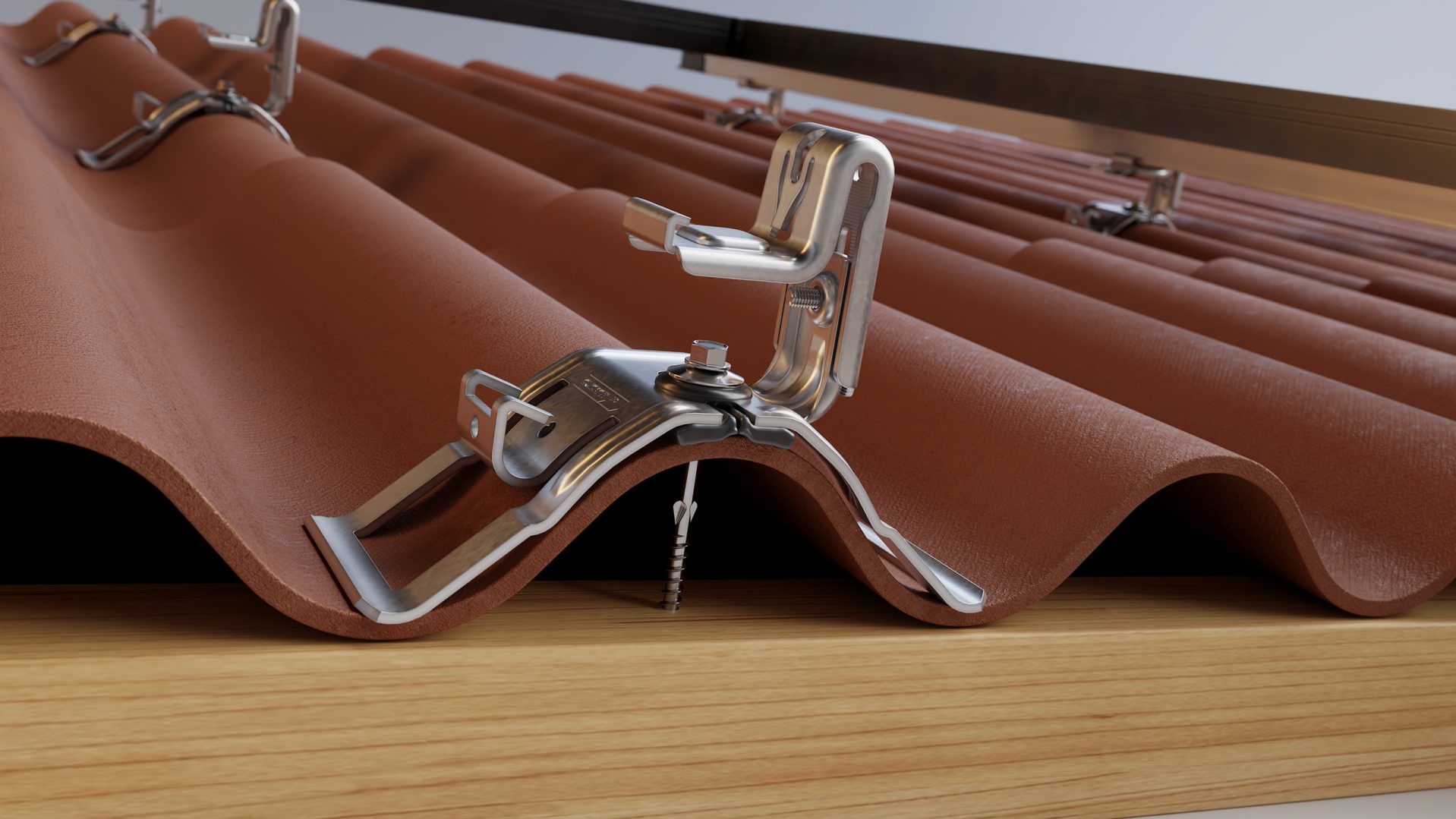

Stick screw

This screw is delivered fully assembled. The flexible adapter quickly and easily accommodates roof unevenness of up to 10 degrees. The universal, rotatable and self-aligning click connection allows mounting of solar panels in landscape and portrait position.

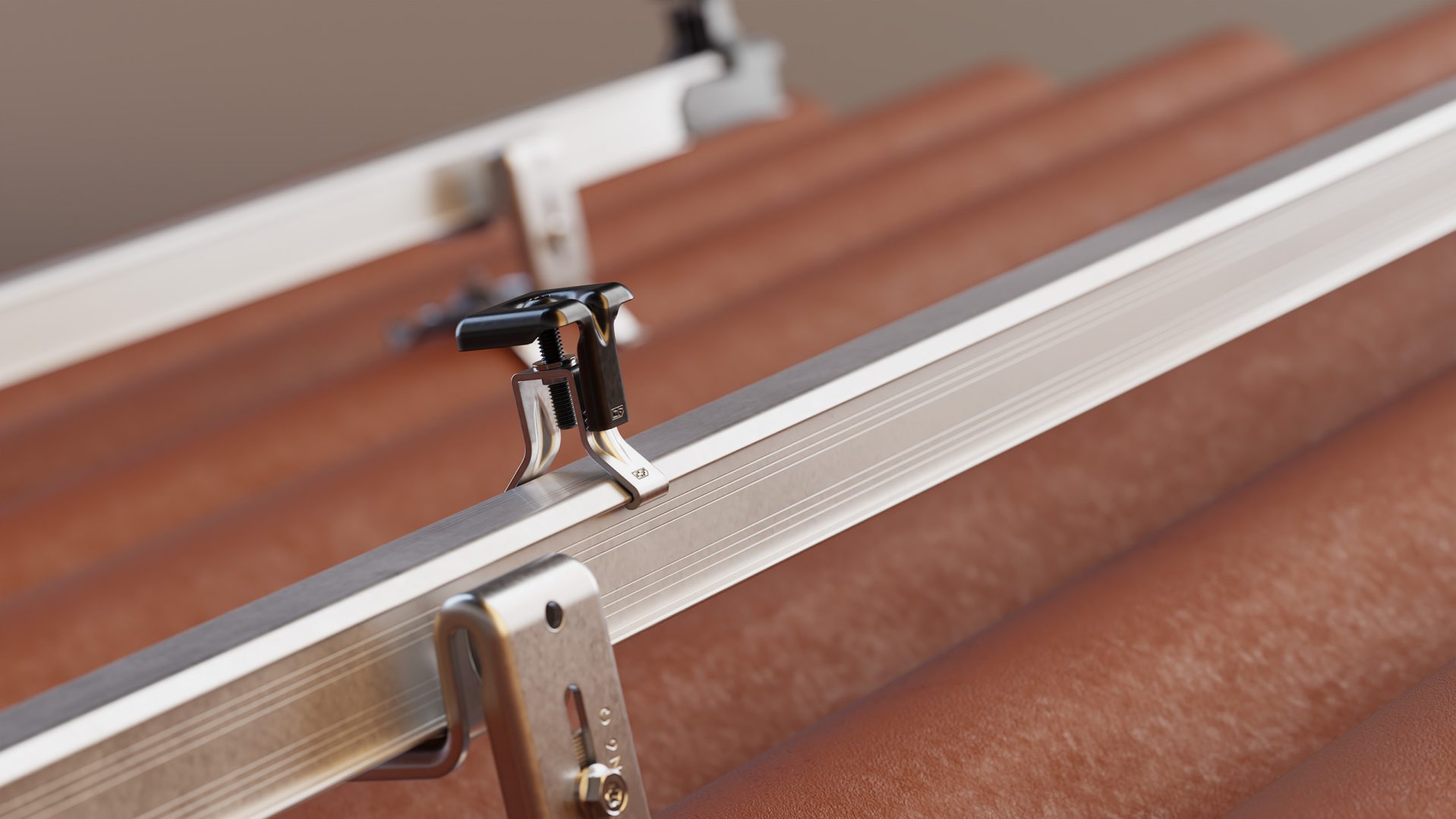

Module clamps

The universal module clamp is height adjustable and thus suitable for solar modules with a frame thickness between 30 and 50 mm. Due to its clever design, the panel clamp (in combination with the end cap) can be used as a middle and end clamp.

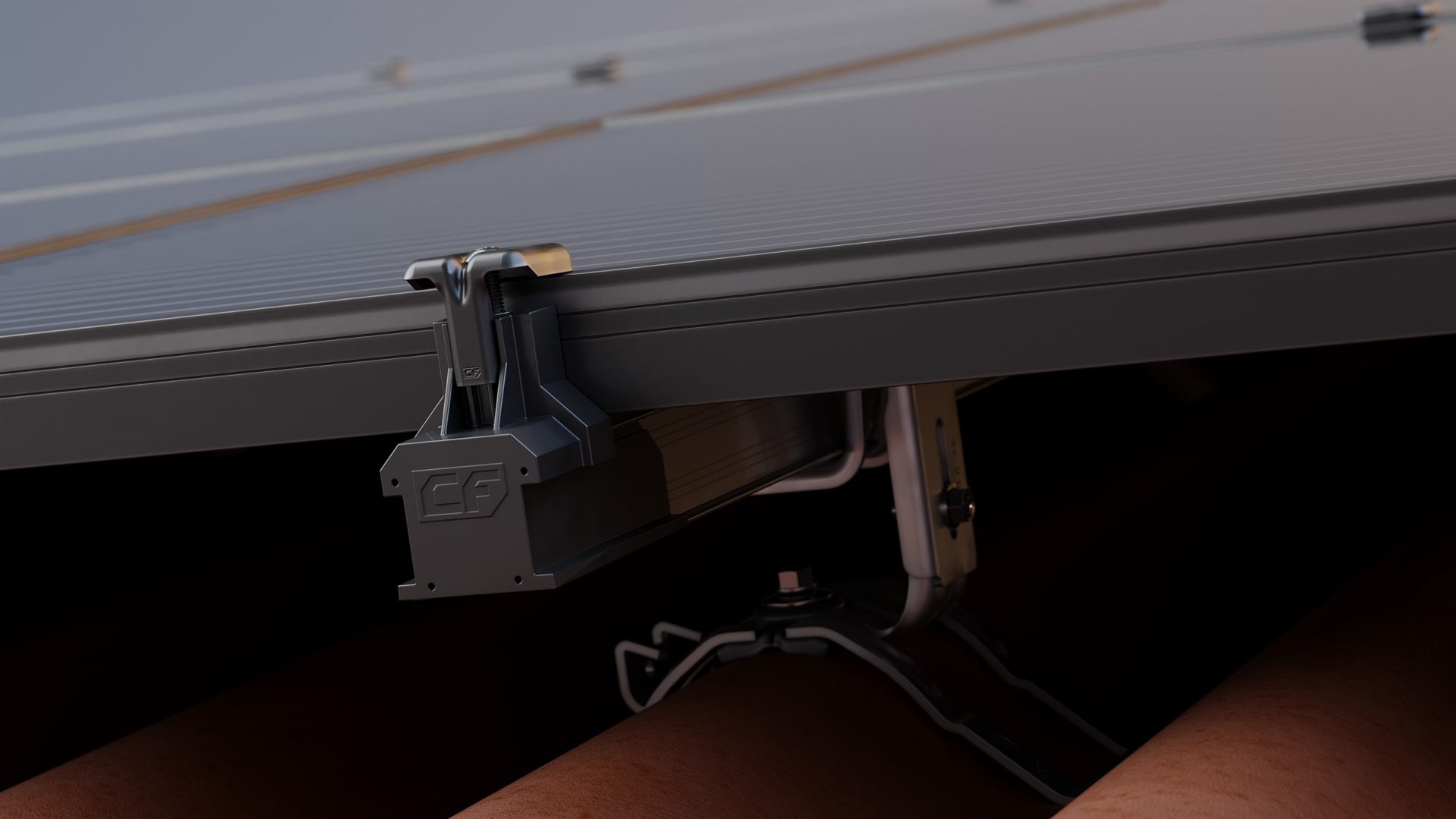

End cap

The end caps provide a stylish and windproof finish. They are available with and without clamp support in grey and black.

Less risk

With the corrugated iron mounting bracket you can use the existing screws in the roof. This means you don’t have to drill extra in the roof. That way you run less risk. Because you don’t have to drill, you have less chance of leaks.

Uniform power distribution
Drilling is not necessary

Project support

Choosing Esdec means receiving support throughout your entire solar project. We support our solar professionals and remove as much of the hassle as possible. For example, you can quickly make a calculation using our calculator and we also offer free training courses and webinars.

Free trainings & webinars

Download brochure

FAQ

ClickFit EVO Corrugated Roof can be used on all types of corrugated roofs. You can use the mounting bracket for corrugated sheets of type 177/51 . Use the ClickFit EVO Hanger Bolt on all other types of corrugated sheets.

The corrugated sheet bracket is 195mm long and 75mm wide. The bracket is also adjustable in height from 121.5mm to 151.5mm.

To attach an optimiser or microinverter (collective name: MLPE = Module Levelling Power Electronics), you can use our ClickFit EVO MLPE Clip Lightweight or Heavyweight (art. no. 1008067 or 1008068). Note! If you mount the panels with the mounting profiles for steel roof, we recommend choosing the high (optimiser ready) mounting profile. This provides sufficient space between the roof and the solar panels. The MLPE Clip Lightweight is simply clicked onto the mounting profile, providing integrated cable management! Then click the MLPE onto the clip. First you mount the MLPE Clip Heavyweight on the MLPE, after which you mount the clip, with MLPE, on the mounting rail. Make sure the MLPE clip is placed at least 15 cm from the end of the mounting profile. Want to see how it works? Watch our installation demo.

All solar panels in the same row are automatically interconnected thanks to the ClickFit EVO Module Clamp. To bond the entire PV system, you do need to connect each row to grounding separately, because the individual rows are not connected to each other by the mounting system. The earthing conductor (≥Ø 4mm2) runs parallel to the positive and negative conductors and is connected to a separate grounding point of the inverter. If you have any questions about earthing and bonding, please contact our technical experts.

With ClickFit EVO Corrugated Roof you can choose between mounting in either landscape and portrait orientation. Choose the right variant of the mounting profile. More information can be found in our brochure.

Can’t find your question here? Feel free to contact us by phone at +31 (0)85 162 22 22
